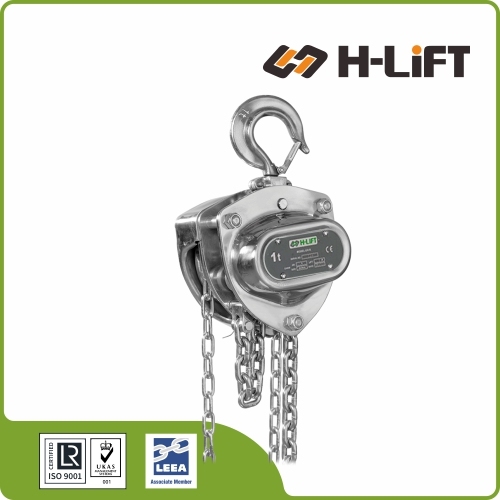

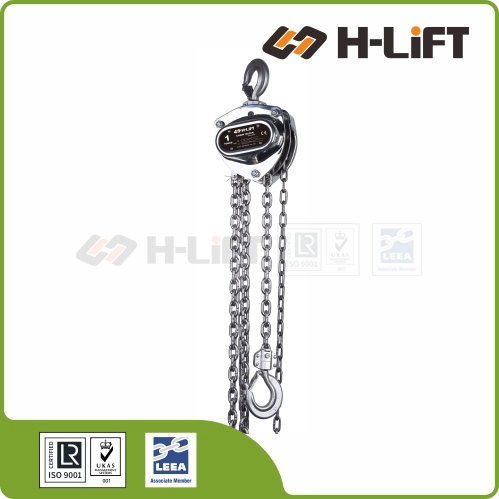

Stainless Steel Chain Hoist CH-SS type

Name: Stainless Steel Chain Hoist CH-SS type
Brand: H-Lift Industries Co Ltd
SKU: 1107
Availability: InStock
Rating: 5 (1 reviews)

No.1107

The H-Lift CH-SS Stainless Steel Chain Hoist is a manual lifting device engineered for hygiene-critical and corrosive environments. Its all-stainless construction offers superior resistance to moisture and chemicals, making it the ideal choice for food processing, marine, and pharmaceutical applications where cleanliness and durability are paramount.

Complete stainless steel construction for superior rust and corrosion resistance
Ideal for hygiene-sensitive industries like food, beverage, and pharmaceuticals
Precision-engineered gears and bearings for smooth, low-effort operation
Available in Working Load Limits (W.L.L.) from 0.5 ton to 5 tons
Highly durable design requiring minimal maintenance in wet or corrosive environments

Technical Data
Safe Use of Chain Hoist

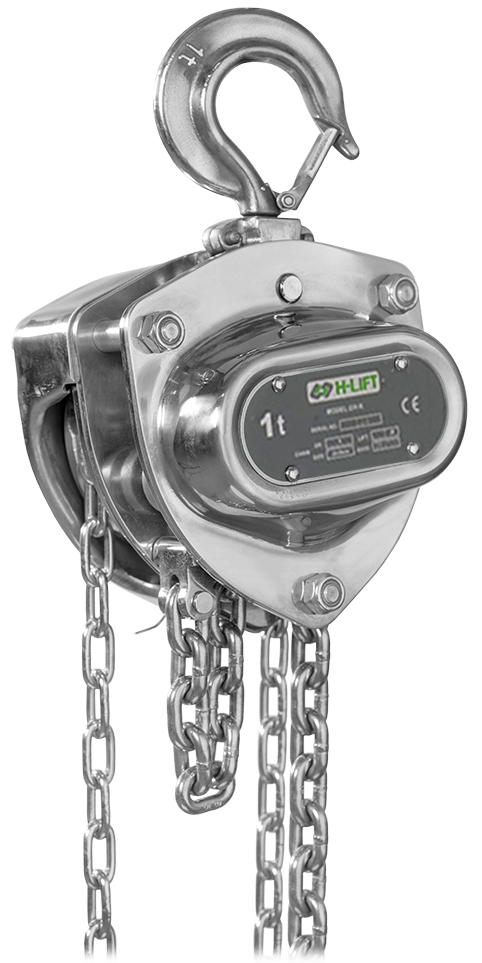

Stainless Steel Chain Hoist (CH-SS Type)

Capacity Range: 0.5t - 5t | Material: 304 Stainless Steel

The CH-SS Stainless Steel Chain Hoist is a premium mechanical lifting device designed for environments where standard hoists would fail due to corrosion or contamination. Its complete stainless steel construction (Grade 304) ensures longevity and hygiene, making it the perfect choice for food processing, pharmaceutical cleanrooms, and harsh marine conditions.

Key Features & Benefits

Corrosion Resistance: Full 304 Stainless Steel construction (body, hooks, chain, nameplate) protects against rust, moisture, and chemicals.
Durability: Rugged design withstands demanding conditions with minimal maintenance required.
Smooth Operation: Precision-engineered gears and bearings for efficient lifting.
Safety: Forged stainless steel hooks with safety latches.
Versatility: Suitable for capacities from 0.5 ton to 5 ton.
Compliance: Manufactured to meet high industrial standards for clean and corrosive environments.

Ideal Applications

Food & Beverage: Wash-down ready and resistant to cleaning chemicals.
Pharmaceuticals: Suitable for dust-free cleanrooms.
Marine: Impervious to seawater and salt spray.
Chemical Industry: Handling hazardous corrosive materials safely.

Technical Specifications & Dimensions

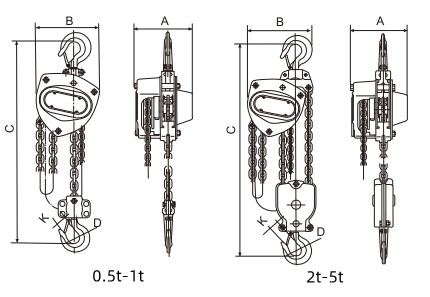

Corrosion Resistant Hand Chain Block for Marine Use *Refer to the diagram above to identify dimensions A (Headroom), B (Width), C (Depth), D (Hook Opening), and K.

Item No.	Capacity	Std Lift	Proof Load	Effort to Lift	Chain Falls	Load Chain	Dimensions (mm)					N.W.	Extra Wt/m	Product Code
Item No.	(t)	(m)	(kN)	(N)	Chain Falls	(mm)	A	B	C	D	K	(kg)	(kg)	Product Code
CHSS005	0.5	2.5	7.35	290	1	6x18	131.5	142	360	40	26	10	1.65	110700500
CHSS010	1	2.5	14.7	366	1	7x21	151	172	376	40	26	13	1.97	110701000
CHSS020	2	2.5	29.4	428	2	7x21	151	192	425	50	34	19.5	3.1	110702000
CHSS030	3	3	44.1	418	2	9x27	173	230	565	55	39	31.5	4.37	110703000
CHSS050	5	3	73.5	400	3	9x27	189	365	710	65	41	60	7.3	110705000

H-Lift Manual Chain Hoist / Chain Block

A chain hoist is a mechanical lifting device used to move heavy loads in situations where electric or hydraulic options are not practical. It consists of a chain wound around internal gears, operated by a manual hand chain to lift or lower loads with precision.

Applications: Commonly used in construction, manufacturing, and mining. H-Lift chain hoists are designed to be durable, reliable, and easily operated by a single person. Available in a wide range of lifting capacities (WLL).

Figure 1: Understanding Lift Height & Headroom

ALWAYS:

Store and handle chain hoists correctly in a dry place.
Inspect chain hoists and accessories before use and before storage.
For top hook suspension, ensure hooks have safety catches or are moused securely.
For trolley suspension, ensure the trolley is correctly set for the beam width.
Check that the bottom hook can reach its lowest point without running the chain fully out.
Adopt safe slinging practices and follow all instructions.

NEVER:

Expose chain hoists to chemicals (especially acids) without consulting the supplier.
Replace the load chain with a longer one without approval.
Tip loading or side hooking.
Use undue effort to force the hoist to operate.
Throw, drop, or drag a chain hoist.
Allow oil or grease to contaminate the brake mechanism.
Expose to water spray, steam, or elements without consulting the supplier.

📋 Selecting the Correct Hoist

Select the hoist based on:

Suspension Type: Hook, trolley, etc.
Capacity & Range: Ensure WLL covers the load.
Environment: The chain and hooks are designed for ambient temperatures between -10°C and +50°C.Consult us if used in high-risk areas (acids, chemicals, extreme temps).

Note: Chain hoists are designed for vertical lifting only.

📦 Storage & Handling

Never return damaged hoists to storage.
Keep dry, clean, and protected from corrosion.
Store by top suspension with chains clear of the ground.
Warning: Never galvanize or plate load-bearing parts without express approval.

🔧 Installation & Commissioning

Test the hoist to ensure correct operation and effective braking.
Ensure the chain is not twisted and moves freely.
Verify the bottom hook reaches the lowest required position without running out of chain.

⚙️ Safe Usage

Do not lift unless you understand slinging procedures.
Never use the hoist chain itself as a sling.
Check for twisted chains (especially on multi-fall hoists).
Ensure the landing area is prepared before moving the load.
Keep fingers and toes clear when lowering.

🛠️ Inspection & Maintenance

Keep load chains lubricated.
Brakes: Must be kept free of oil/grease.
Inspect for: Wear, hook damage, bent/notched chains, corrosion, or illegible markings.
If defects are found, refer to a Competent Person immediately.
