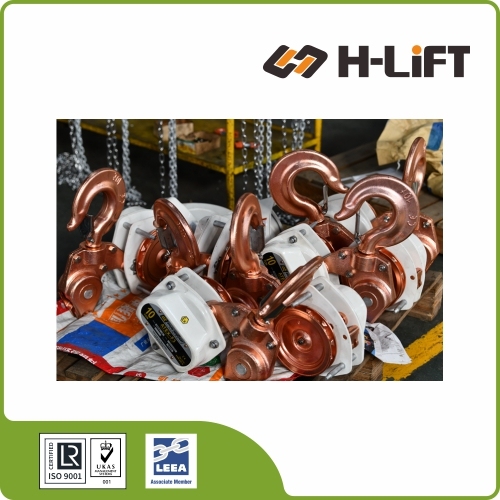

The H-Lift CH-EP Non-Sparking Chain Hoist is a specialized ATEX-compliant lifting device designed for safe operation in hazardous environments where potential explosion risks exist. Engineered with spark-resistant components, this manual hoist provides a secure lifting solution for areas containing flammable gases or dust, while maintaining a robust lifting capacity of up to 30,000 kg without the need for electricity.

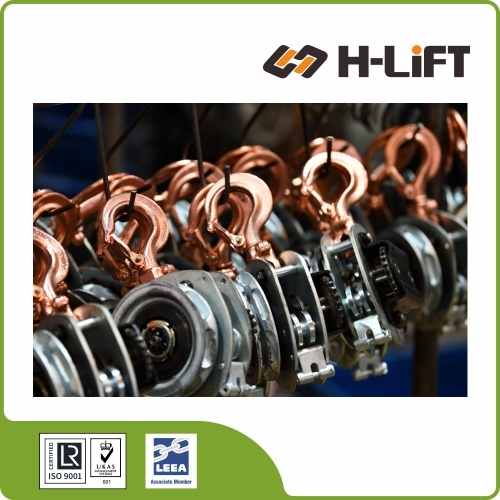

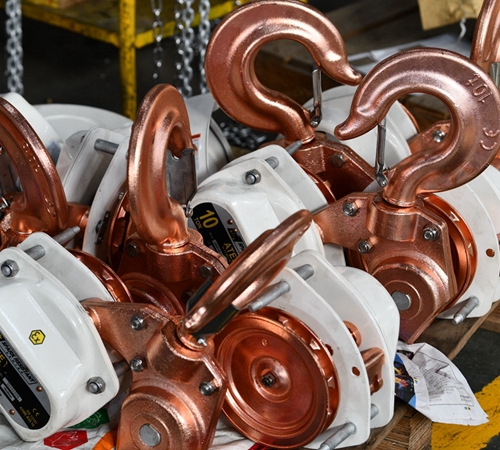

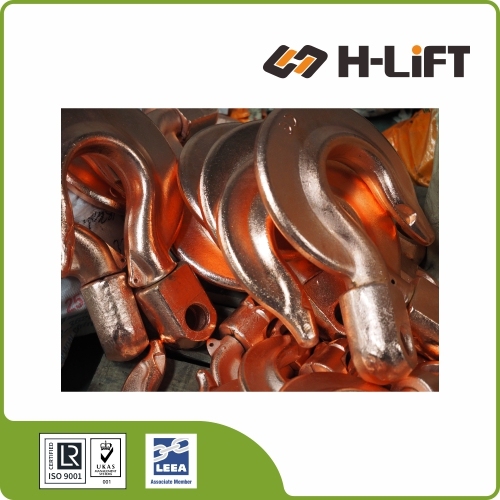

Designed for hazardous environments where sparks could cause catastrophic explosions, the CH-EP Series provides maximum safety. It is engineered with specific materials like copper and bronze to prevent ignition sources during operation, making it ideal for oil refineries, chemical plants, and mines.

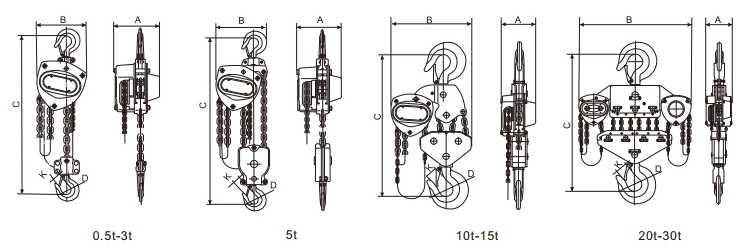

Refer to the diagram above to identify dimensions A (Headroom), B (Width), C (Depth), D (Hook Opening), and K.
| Item No. | Capacity | Std Lift | Proof Load | Effort to Lift | Chain Falls | Load Chain | Dimensions (mm) | N.W. | Extra Wt/m | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (t) | (m) | (kN) | (N) | (mm) | A | B | C | D | K | (kg) | (kg) | |||
| CHEP005 | 0.5 | 2.5 | 7.35 | 240 | 1 | 5x15 | 132 | 148 | 345 | 35 | 23 | 9.3 | 1.4 | 110600500 |
| CHEP010 | 1 | 2.5 | 14.7 | 250 | 1 | 6x18 | 151 | 172 | 376 | 40 | 26 | 12.2 | 1.6 | 110601000 |
| CHEP015 | 1.5 | 2.5 | 22.05 | 265 | 1 | 7.1x21 | 173 | 196 | 442 | 45 | 29.5 | 16.5 | 1.9 | 110601500 |
| CHEP020 | 2 | 2.5 | 29.4 | 310 | 1 | 8x24 | 175 | 210 | 470 | 50 | 34 | 19.5 | 2.2 | 110602000 |
| CHEP030 | 3 | 3 | 44.1 | 372 | 1 | 10x30 | 205 | 255 | 530 | 55 | 37.5 | 32 | 3.1 | 110603000 |
| CHEP050 | 5 | 3 | 73.5 | 380 | 2 | 10x30 | 189 | 280 | 630 | 65 | 41 | 43 | 5.3 | 110605000 |
| CHEP100 | 10 | 3 | 147 | 385 | 4 | 10x30 | 189 | 385 | 780 | 85 | 50 | 80.7 | 9.6 | 110610000 |
| CHEP150 | 15 | 3 | 183.75 | 385 | 6 | 10x30 | 242 | 405 | 920 | 110 | 80 | 140 | 13.9 | 110615000 |
| CHEP200 | 20 | 3 | 245 | 390 x 2 | 8 | 10x30 | 226 | 640 | 980 | 110 | 80 | 180 | 19 | 110620000 |
| CHEP300 | 30 | 3 | 367.5 | 390 x 2 | 12 | 10x30 | 454 | 705 | 1280 | 110 | 80 | 350 | 27.7 | 110630000 |

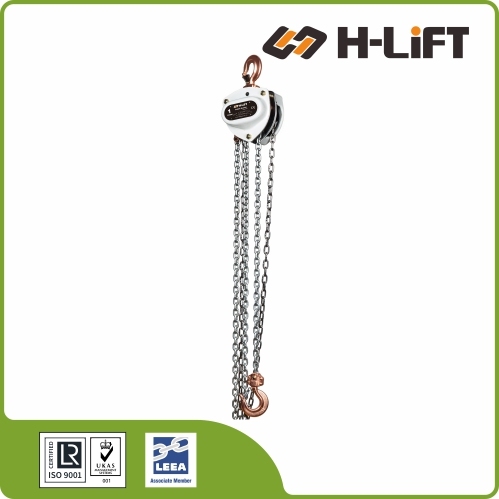

A chain hoist is a mechanical lifting device used to move heavy loads in situations where electric or hydraulic options are not practical. It consists of a chain wound around internal gears, operated by a manual hand chain to lift or lower loads with precision.
Applications: Commonly used in construction, manufacturing, and mining. H-Lift chain hoists are designed to be durable, reliable, and easily operated by a single person. Available in a wide range of lifting capacities (WLL).
Figure 1: Understanding Lift Height & Headroom
