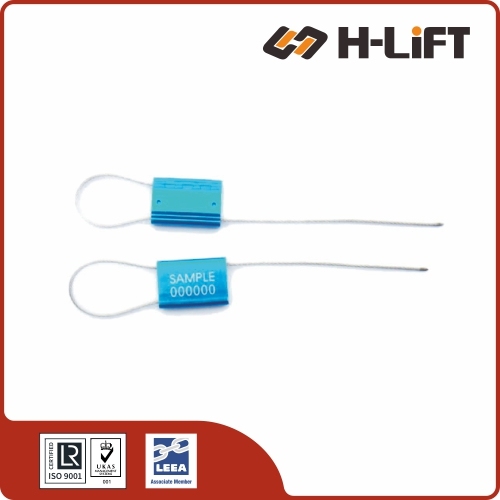

The H-Lift CS15 and CS20 are industrial-grade cable security seals available in two strength classes, designed to prevent tampering on containers, tanker trucks, and trailers.
The Cable Seal CS15 & CS20 Type series provides versatile, adjustable-length security for diverse logistical needs. Featuring braided galvanized steel cables and robust aluminum or ABS-coated bodies, these seals are engineered to fray upon cutting, providing irrefutable evidence of unauthorized access. Whether securing small valves or heavy-duty cargo containers, this series offers the perfect balance of flexibility and high-tensile strength.
Strength: Approx. 150 kg (330 lbs)
Material: Aluminum body with galvanized steel cable.
Best For: Light-duty applications such as chemical drums, boxes, airline trolleys, and small valves.
Strength: Approx. 250 - 300 kg (550 - 660 lbs)
Material: ABS coated steel or heavy-duty aluminum body.
Best For: Medium-to-heavy duty needs including truck trailers, cargo containers, and rail cars.

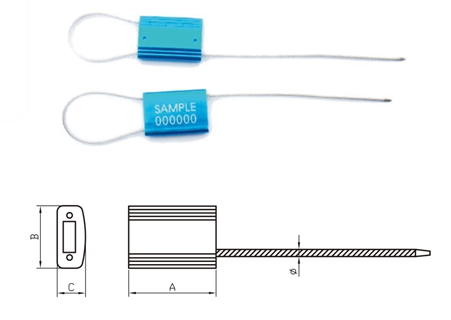

| Item No. | Diameter (mm) | N.W. (kg) | PCS / CTN | Body Dimensions (mm) | Product Code | ||
|---|---|---|---|---|---|---|---|
| A | B | C | |||||
| CS15 | 1.5 | 0.0130 | 1000 | 29 | 20 | 7.8 | 705010015 |
| CS20 | 2.0 | 0.0135 | 1000 | 26 | 26.5 | 8.8 | 705010020 |
